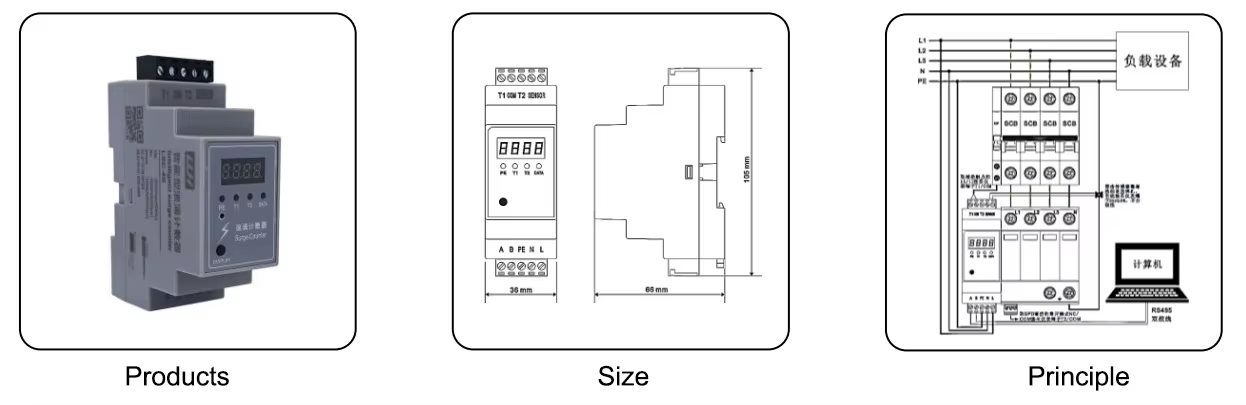

Multi-Channel Lightning Strike Counter 9999 Digits 0.5kA-100kA Current 2 Channels With RS485 Communication Interface

Brand Name : LLH

Model Number : LSC-4S

Place of Origin : Guangdong Province.China

MOQ : 1 piece

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 5000-10000 pieces/mouth

Delivery Time : 5-8 work days

Packaging Details : box

Contact Now

Description

This system is designed for monitoring and intelligent management of surge protectors, including recorded lightning strike counts, strike duration, remote signaling data, status of pre-breakers, and operational status of lightning arresters.

Features

• Display lightning arrester discharge count and status of two switch signals online

• Microprocessing and digital storage ensure accurate data recording, interference-free operation, and data retention during power outages.

• Equipped with an integrated RS485 communication interface, enabling real-time external transmission of surge arrester data.

• Modular structure, terminal wiring for easy installation and use


Parameter
Multi-Channel Lightning Strike Counter 9999 Digits 0.5kA-100kA Current 2 Channels With RS485 Communication Interface

Standard IEC 62561-6
Product Model LSC-4S
Electrical parameters
Collection form Transformer coil
AC power supply 220Vac(50Hz)
Maximum count digit 9999 times
Minimum count induced current/tc 0.5kA (8/20us)
Maximum count induced current/mcw 100kA (8/20us)
Communication Protocol and Transmission RS-485 (Modbus communication protocol)
Peripheral switch signal monitoring 2 Line
Additional features Power outage memory, reset, lightning strike time
Mechanical parameters
Wiring cross-sectional area 0.5mm²~1.5mm²
Stripping length 10mm
Transformer threading capability φ14mm
Specifications and Dimensions 105mmx36mmx66mm
Housing material nylon plastic
Working environment
Installation location Indoor
Waterproof rating IP20
Temperature range -40℃... +80℃
Humidity range Relative humidity ≤ 95%
